Product Overview

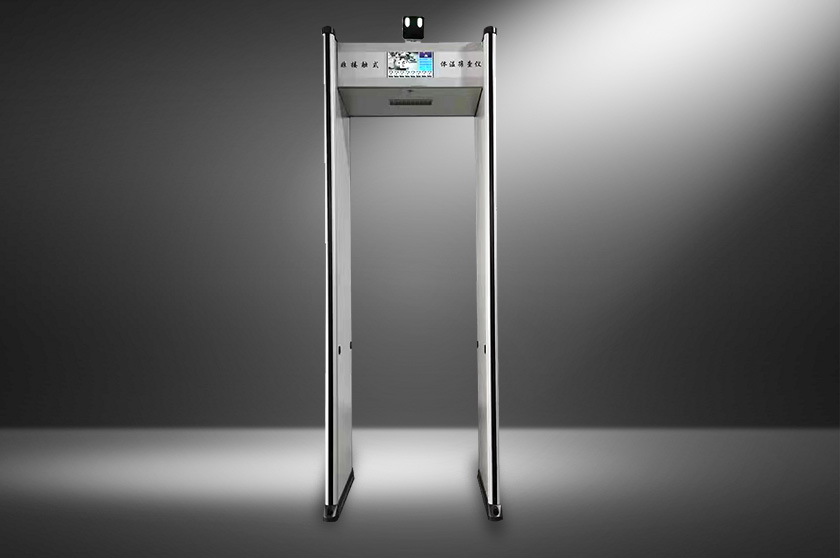

Infrared thermal imaging of the 10 inches of intelligent body sifting + metal detection screening door:Thermal imaging temperature (front) metal detection (backside) door, functionally combined with one
An infrared body temperature is measured, heat targets are screened and sound alarms are reported when the security gland is measured through infrared non-contact, human face recognition, temperature and metal testing are combined, and the metal swarm is tested first; Many advanced feature functions. Double-eyed face recognition, facial photographs.
No temperature can be measured for the head of a man passing through the security screen. 3°C, test distance 1. 5-3 meters. Applicable environment (indoor/no lumber)
Multi-debate zone technology 6/18 detects the area and each detects the 200-class sensitivity. (b) Consensual regulation (with self-adaptation techniques) and high-light LED alerts, with precise location of the cached prohibited parts;

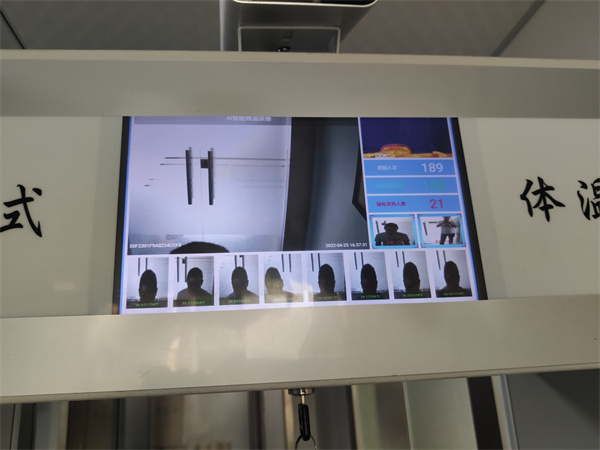

Large screen technology 10. One inch of LCD screens, new debugging interfaces, more simple to understand;
Detection products: alert alerts should be given in at least six locations; There should be both sound light and alarm; Suspected metal objects can be accurately shown in each area. (b) Detectable magnetism, non-magnetic and alloying metals; Each detection area has a nuanced procedure of 0 to 199 degrees. The parameters can be password-protected and are only allowed to be operated by an authorized person, without maintenance and without regular calibration. A data storage function that automatically counts the number of people passing through and the number of alarms, and that allows data to be transmitted through interfaces such as the network or USB.
Number of people: Number of people who have passed and number of people who have been warned can be accurately detected.
Panel displays: High-profile digital displays the number of people passing through the police and the number of people calling the police. Multigroup work frequency can be set so that multiple units work side by side without interference. (a) Super-high shell protection technology, which is superior to the protection performance of IP55;
(b) The alarm data count is equipped with intelligent passenger traffic and alarm counters, which automatically display in real time the number of alarms and incoming and outgoings, and 100,000 ultra-high volume records are easily accessible in real time;
The alarm function, which is to alert the light, sound, and set up any setup;
Password operation password protection allows only authorized personnel to operate, and is more secure;
(b) The safety of the body is not harmful to the person carrying the accelerator, pregnant women, magnetic media, etc.; The communications interface is reserved and can be connected to computers, cameras, tritium, etc. Computers can display parameters for security gills and can directly adjust parameters for security gills by computer;
But radiant+ thermally i.e. infrared temperature. Support temperature anomaly detection, sound light alert. Support for face-caption capability, with 10 faces tested and captured simultaneously. |

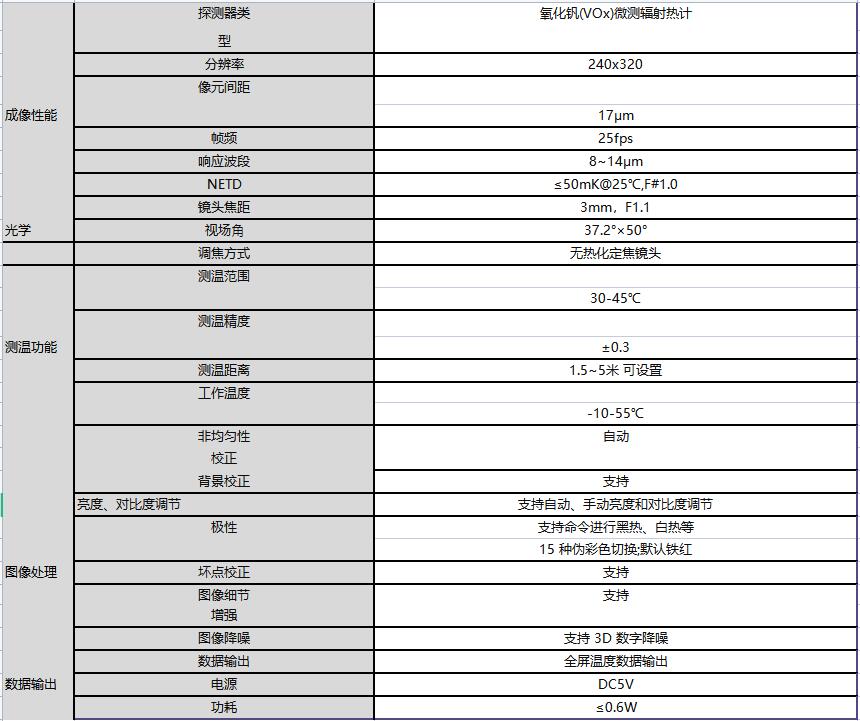

Thermal imaging module: Non-refrigerant detector, resolution 160 x 120 (default 320 x 240 output). Support for AGC4 Photo by Flickr user @Délés.com. Thermal sensitivity of NETD Temperature range 30-45°C, temperature accuracy 0. 3°C Temperature is wide, visual range 37. 2° x 50°, temperature range 1. 5-3 metres supports the two-ray integration image model. Supports image patterns in photolytic drawings. The government has supported 16 false colour models such as white, black, and iron red. Visible light module 2 million star-scale 1/2. 7 inches high performance CCOS; The maximum resolution can be as high as 1920 x 1080@60fps. This can be used to support low-yard rates, low-time delay, and enhanced coding for areas of interest to ROI. Support for 3D digital noise reduction and 120dB wide dynamic. |
 |
|
Technical Standards
Specifications

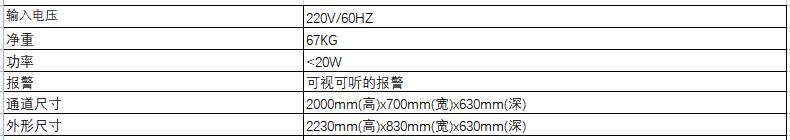

- The security screening gate specification

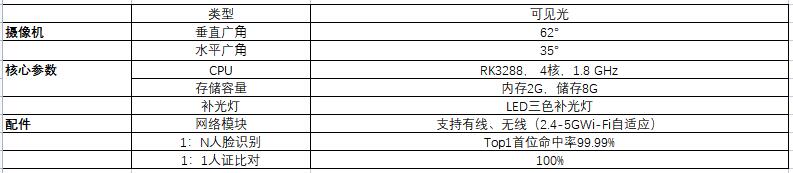

Parameters for the human face test module
Product Video
The original video server is unavailable. Please contact us for the product demonstration video.
Contact usApplications
- Applied industry
