Product Overview
Description of the performance of the Sensory (Cront-Tracker) Smart Copper Prober:
Accuracy: The highest sensitivity can be detected in the middle of the door with a large needle (or 1.2-type needle) capable of 100 detections and 100 detections without underreporting or collusion. Impacts such as skin, buckle, shoes, bras can also be excluded, with high sensitivity and maximum sensitivity to detect copper products above 200-300 grams, which are related to the shape and size of the copper products being measured.
Sector 2, 6 shows that the product is divided into six defensive areas, and that suspicious objects can be accurately shown in each area.
3. Count: Double-sided infrared can detect the number of people passing through and reporting to the police, with 100 people walking, or with no or no counting.
4. Earthquake-proof design: unique earthquake-proof design, standing in the middle of the door, hand-lapping the side door plate, and the door is not misreported.
5. Sensitivity regulation: Sensitivity can be adjusted as needed, with a total of 100 degrees of sensitivity.
6 Gate material: Fireproof panels, plus waterproof film, containing aluminium alloy pillars, non-modular, fireproof, tideproof.

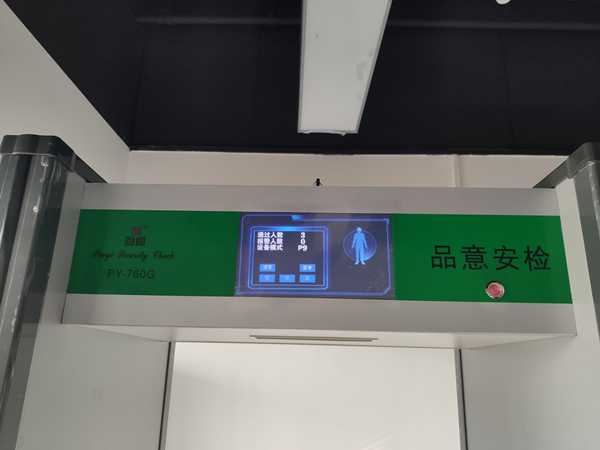

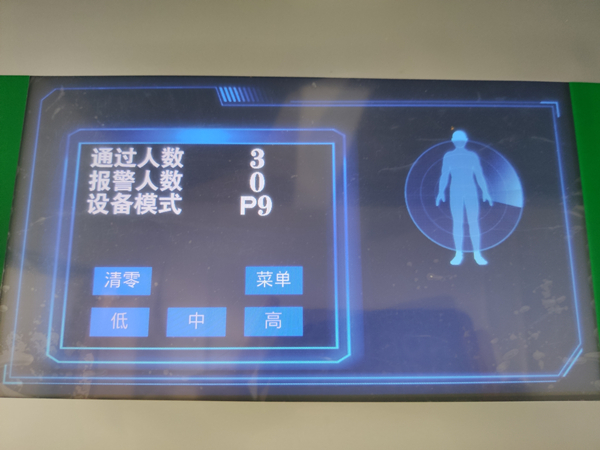

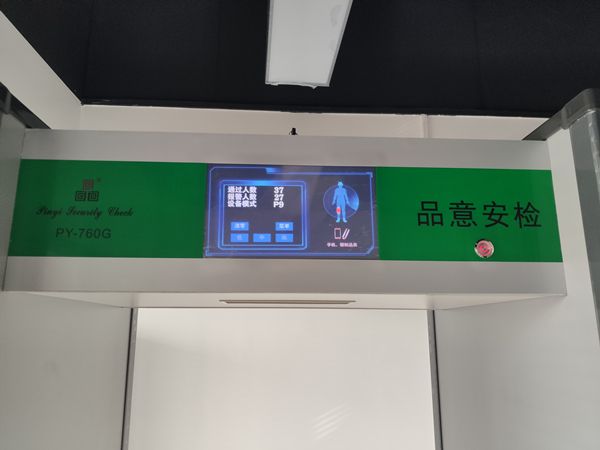

7. Panel display: High-profile digital displays the number of people passing through the police and the number of people calling the police, as well as the number of the alarm areas.
The sound light is also reported to the police and can be shown at the top of the door.
9. The control of parameters can be arranged with the selected controller. Parameters can be password protected.
11. For various uses of the environment, the system adopted a world-class electromagnetic compatibility design and used the DSP processor to calculate and filter the sampling signals of prohibited items, thus providing the entire equipment with an extremely robust electromagnetic resistance to intervention.
12. Multigroup work frequency can be set to allow multiple units to work side by side without interference.
13: No harm to a person carrying a heart-cardiac amplifier, pregnant woman, magnetic medium, etc.
Metal classification testingIt is effective in excluding misreporting of non-coront metals such as cigarettes, lighters, keys, coins, belts, shoes, ladies’ underwear and steel butts.
|
Low rate of misreportingThe misreporting rate is below 5%, mainly due to copper-plugged cufflinks, watches and bracelets, and the hand-held hand-held hand-held in the brass-plugs can be used to prevent mists through a detector. |
 |
High sensitivity.The highest sensitivity can be detected over 200 g of copper products, with the specific sensitivity associated with the shape and size of the copper products being measured |
Technical Standards
Electrical application based on ENN 60950
Radiation reference EN50081-1 implementation
Anti-intervention application with reference to ENE 50082-1
Strict implementation of existing national standards for adopted metal detectors
Specifications
External power supply: 215 – 230V 50/60Hz
Work: 60W
Working environment: 20°C – 45°C
Full transport weight: approximately 95-120 kg
Frequency of work: Self-regulating according to the installation environment
Whole weight: approximately 90-100 kg
Outer dimensions: (mm) 2220 (high) x 850 (wide) x 650 (deep) plus foot-sets of approximately 750 (deep)
Channel size: (mm) 2000 (high) x 700 (wide) x 650 (deep)
