Product Overview
Mobile phone detection of door features:
One. 1. Mobile phone detection doors effectively exclude everyday items such as coins, glasses, watches, belts, magnets, keys, lighters, stainless steel glasses, umbrellas, etc., and accurately identify any stand-by, switch-off, switch-off, removal of batteries, removal of SIM cards, etc., and any classified electronic products such as mobile hard drives, laptops, Ipad, digital cameras, cameras, etc.; In addition, products can detect, control and classify prohibited items such as metal tanks and metal pipes;
One. 2 Cell phones can also be used to alert the police on the fifth floor of copper pallets; Cell phones can be used to call the police.
One. 2. Speed of detection: the speed of detection is only 1-2S, with 40 people per minute;
One. 3. High accuracy: 98 per cent.
Detect range (mode optional)
|

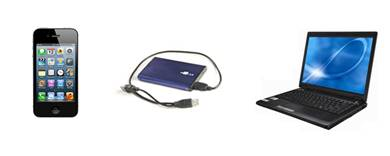

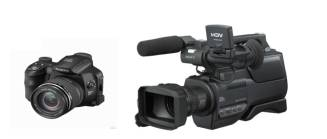

Mode 1: Cellular detection (cellular phones, mobile hard drives, laptops, digital cameras, camera-related electronics, etc.)
|
Model II: Cell phones + contraband detection mode (cell phone detection mode + controlled items, metal tanks, metal pipes, etc.) |
 |
Mode III: All metal detection mode (under this pattern, any metal such as a knife will be called to the police, etc.) |
Technical Standards
III. APPLICATION SPECIFIC:
This equipment system is used in schools, secret services, prisons, detention centres, public resource trading centres, military forces, military industries, public security, examination centres, government units, drug treatment centres, research and development centres, commercial meeting places, large enterprises, production plants, etc.
IV. Cellular device parameters for door detection require:
1. The detection unit and the simulator card form the signal-record filter unit, which achieves the capture and selected frequency magnification of a specific micro-simulation signal.
2. Requires a means of detection door, with 20 detection units in each door.
3. The detection unit is required to be made up of a through-the-door detection door, which is resistant to disturbance and adapted to the installation site of the large metal. For example, communication equipment detectors can be installed in parallel, with a distance of approximately 50 cm.
4. Test techniques use electromagnetic induction principles and vortex effects and use digital signal processing techniques.
5. Signal sampling module (collector card) using the “Float-based calculator microprocessor + FPGA field programmable door array” structure, primary frequency of microprocessor & gt; 100 MHz, Flash> 256KB; FPGA field programmable door arrays to conduct double-channel signal sampling with sample chips, sampling & gt; 20 MHz. Sample processing functions are performed in conjunction with the corresponding embedded software.
6. The detection portal has at least an electronic product detection model, an electronic product plus a prohibited material detection model, which facilitates flexible switching of two modes by users according to the requirements for use.
7. The detection door shall be excluded from the mechanical watch, which shall not be called to the police when accompanied by the mechanical watch;
8. Models for detection of electronic products: the installation of detection doors at the location of the designated channel on the one side will result in the exclusion of routine metal items such as mechanical watches, belts and key strings on the body of the person being tested, and will inform the person whether he or she is carrying electronic products such as mobile phones, conduct sound alarms and inform the location of the hiding place; The detector door does not require size for the detectable mobile screen, for example, a mobile phone that only detects a screen of 4 inches or more is not required.
Electronics + prohibited material detection model: it can result in the removal of everyday metal items such as mechanical watches, belts, keys, etc., on the person being tested, which, in addition to detecting mobile phones, detects most contraband for sound light alerts and alerts the type of items to which the person is exposed and informs the location of the cache;
10. Under the prohibited goods detection alarm function mode, detection doors should be able to alert the police when the person under examination carries a contraband packaged with copper tatters, a steel nail with non-metal casings.

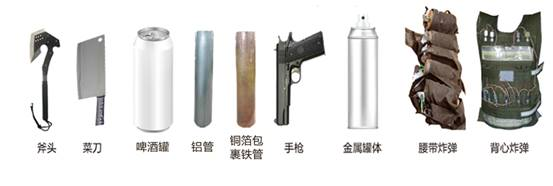

11. The detection door shall be capable of showing the type of item that was the alarm, and the type of prohibited item that was detected shall be no less than four. For example, when a mobile phone is carried, the type of prohibited item that is detected is a mobile phone; When carrying a knife or gun, the prohibited goods shall be informed of the type of weapon or sword being tested; When aluminium tubes are carried, the type of prohibited goods that is detected shall be notified; When carrying a pony iron can, the type of prohibited item is notified.
12. Real-time high temperature screening with indoor temperature detection error

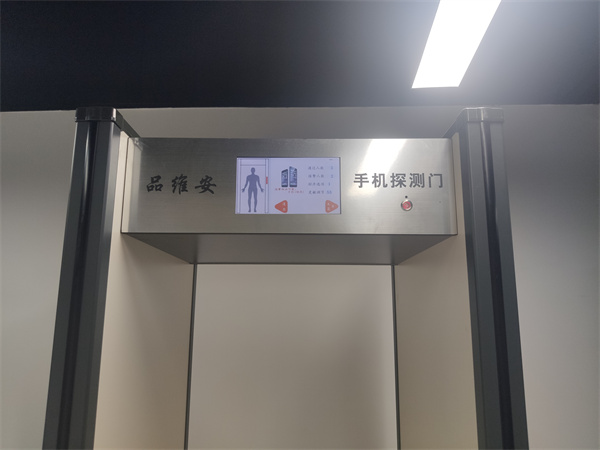

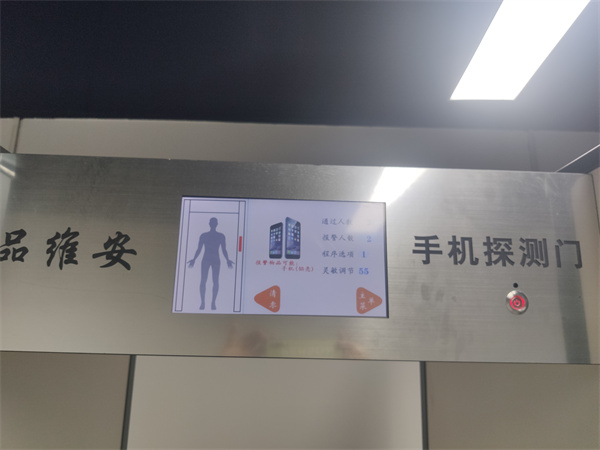

13. A liquid crystal touch screen of not less than 10 inches is available to display information such as through numbers, alarm numbers, alert objects location, and to debug the parameters of the device by means of the LCD screen.
14. The detection equipment can still call the police for the cell phones that have been removed from the microphones and microphones.
15. The detection system control module can exclude magnets and magnetic belts and detect the hidden mobile phone under the belt.
16. There are no blind areas in the top human head area, and over four testers of different heights (with a difference of 4 cm or more each) have a detection accuracy of over 90 per cent hidden in their head hats.
Cell phones are hidden inside the thigh and are also reported to the police through the door.
18 Requires a human alert to be made, to be detected by means of a communication device at a very slow rate (time can be set according to user requirements, for example, 6 seconds) for testers.
The door-top crystal touch screen does not need to be controlled by an external computer. When an external computer fails, the detection door and its LCD screen work independently and the user can still regulate the parameters through LCD screen.
20, the system is able to visualize the location of alert items via virtual images on the display screen; The system should enable remote computer connectivity and the computer double-screen surveillance mode (based on the user ‘ s actual situation) for the door and remote duty room.
21 Persons passing through mobile phones can be called to the police in real time, for a detection time of approximately one second, and more than 30 persons per minute can be detected by the means of a single-second warning.
EMPs should meet national security standards.
23 The user needs-based alarm photo system can be installed, and the detected person is found carrying prohibited electronic equipment, automatically initiating the photograph, showing the capture of the images at times and recording the log audit backstage.
24 The detection system control module should include external interfaces that allow the inspected person to contact the switchboard directly with the mobile phone alarm, and that the person cannot pass through if it is found that the person with the cell phone is in a state of closure; The person tested is not carrying a mobile phone.
The system can be equipped with smart transfer belts based on user needs, so that daily items such as walkie-talkies can be placed on the conveyor belt, which can be passed over for 1-3 seconds without automatic suspension of the transmission belt.
The goods supplied by our company enjoy legal title and authorization, without violating the rights of any third party to intellectual property, technical secrets, etc.
27, I’m a good businessman.
28, Extra-power: 220V; Frequency: 50/60HZ;

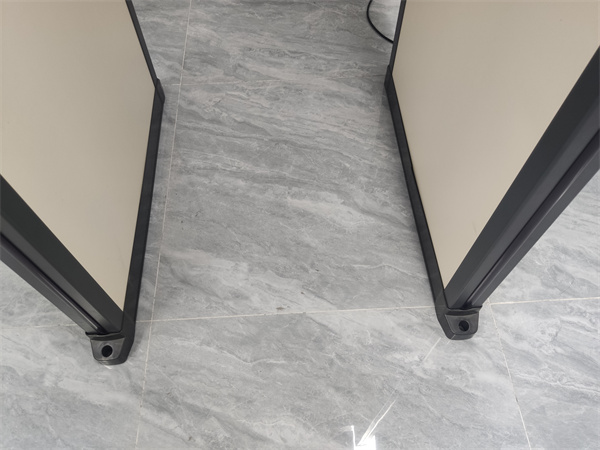

29, outer dimension: (mm) 2220 (high) x 850 (wide) x 800 (deep) plus foot wraps of about 900 (deep)
30, Channel size: (mm) 2000 (high) x 700 (wide) x 800 (deep)
31 Weight: approximately 90-120 kg.
Specifications
External power supply: 220V; Frequency: 50/60HZ;
*Female size: (mm) 2220 (high) x 850 (wide) x 800 (deep) plus foot wraps of approximately 900 (deep)
Channel size: (mm) 2000 (high) x 700 (wide) x 800 (deep)
Weight: approximately 90-120 kg.
Product Video
The original video server is unavailable. Please contact us for the product demonstration video.
Contact usApplications
This equipment system is used in schools, secret services, prisons, detention centres, public resource trading centres, military forces, military industries, public security, examination centres, government units, drug treatment centres, research and development centres, commercial meeting places, large enterprises, production plants, etc.
